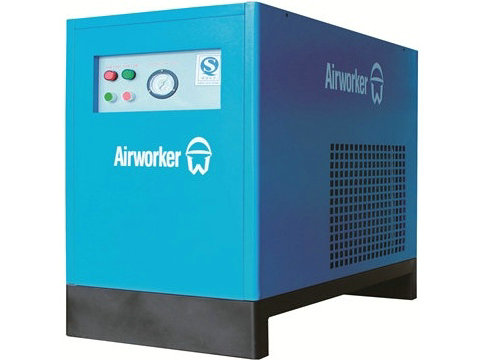

Airworker®  AD Series Refrigeration Air Dryer

•  Consistent high-quality compressed air
•  Lower pressure differential
•  High efficiency heat exchange
•  Reduced running costs

Type Flow capacity Electr. Power Outlet Weight Compressor Power  HP Dimensions
SCFM m3/min Power HP Supply V PT Kg mm
AD7 28 0.8 0.3 220 25 50 7.5 700*400*720
AD10 45 1.3 0.5 220 25 57 10 700*450*720
AD15 67 1.9 0.5 220 32 69 15 700*450*740
AD20 92 2.6 0.75 220 50 84 20 700*450*840
AD30 134 3.8 1 220 50 110 30 850*500*920
AD50 240 6.8 1.5 220 65 148 50 1150*550*920
AD60 268 7.6 2 220 65 164 60 1350*700*920
AD75 370 10.5 3 220 80 227 75 1350*700*1160
AD100 512 14.5 3 220 80 263 100 1350*700*1160
AD150 762 21.6 5 380 100 305 150 1550*750*1300
AD200 865 24.5 5 380 100 330 200 1550*750*1300
AD250 970 27.5 6.5 380 125 380 250 1700*800*1450
AD300 1130 32 7.5 380 125 420 300 1700*800*1500
AD350 1306 37 8 380 125 465 350 1700*800*1550
AD400 1482 42 8 380 150 490 400 1700*800*1600
AD450 1694 48 10 380 150 535 450 1700*800*1600
AD500 1941.5 55 10 380 150 595 500 1700*900*1600
