Airworker® AF Series compressed air filter
AF_ V   efficiency of 99.99%  relative to 3 μm
AF_ P   efficiency of 99.9999%  relative to 0.01 μm
                 And a residual oil content up to 0.01 mg/m3
AF_ A   efficiency of 99.9999%  relative to 0.01 μm
                 And a residual oil content up to 0.003 mg/m3

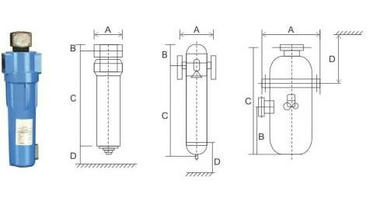

Type Outlet   DN Flow capacity Dimensions(mm) Weight   Kg Filter Element
SCFM m3/min A B C D type Quan.
AF007 25 23 0.7 90 25 245 125 1.1 7 1
AF015 25 50 1.5 90 25 245 160 1.1 15 1
AF024 25 80 2.4 110 33 252 770 2.2 24 1
AF035 40 117 3.5 110 33 252 220 2.2 35 1
AF060 40 201 6 110 33 482 370 2.5 60 1
AF090 65 302 9 150 50 530 390 6 90 1
AF120 65 503 12 150 50 750 620 12 120 1
AF150 65 737 15 150 50 900 700 13.5 150 1
AF240 80 838 24 310 200 1320 700 65 120 2
AF360 125 1206 36 475 1105 1460 700 115 120 3
AF450 125 1508 45 475 1265 1635 770 135 150 3
AF600 150 2010 60 565 1370 1760 200 180 150 4
AF750 150 2513 75 590 1400 1820 770 200 150 5
AF900 200 3015 90 590 1430 1890 770 255 150 6
AF1200 200 4020 120 660 1440 1900 770 260 150 8
AF1500 200 5025 150 700 1455 1930 770 270 150 10
AF1800 200 6030 180 750 1470 1960 770 295 150 12
AF2100 250 7035 210 860 1520 2080 770 445 150 14
AF3000 300 10050 300 960 1565 2170 770 584 150 20
AF3600 400 12060 360 960 1615 2280 770 655 150 24
AF3900 400 13065 390 1010 1640 2340 770 790 150 26
